Specifications:

Brand	EDUP
Model	EP-AB003
Supported standards	IEEE802.11 B/G/N
2500 MHz frequency	2400-2500MHz
Impedance	50u03a9
RF output power	3000MW [35dBm]
Transmit gain	13-17 dB
Receiver gain	8 - 12dB
Noise factor	3.0 dB (typ)
Operating temperature	-40°C to +70°C
Operating humidity	up to 95°
Housing	Aluminum
Weight	400g
Size	6.5X3.0u00d71.5cm

Features:

1. Increase wireless network coverage and stability;
2. Supports 2.4G B/B+/G/N super G wireless network and bluetooth devices, frequency range 2400-2500MHz internationally recognized industrial frequency band;
3. The maximum output power is 3W (35dBm,), bidirectional, half-duplex and automatic switching (plug and play), automatic gain control;

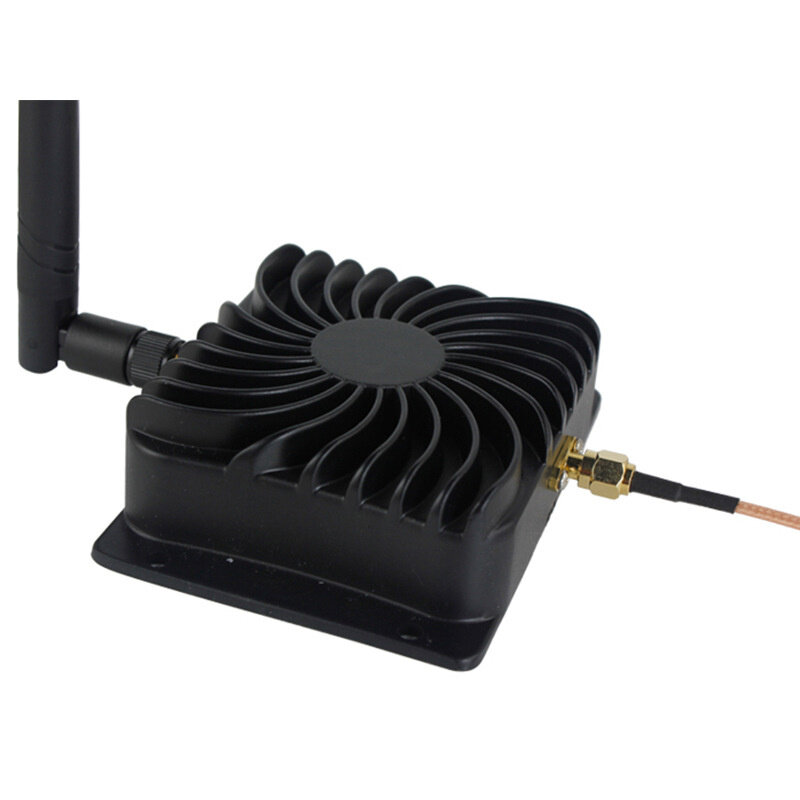

4. SMA connector makes it easy to replace various antennas and can be connected to indoor and outdoor directional and omnidirectional antennas;
5. Can be used with bluetooth devices, wireless network cards, wireless routers, and wireless APs;
6. There is no limit to the input level, no matter how high the input power is, it will not burn out;
7. Made of all aluminum alloy for easy heat dissipation;
8. The installation is simple and convenient, no software is required, plug and play;

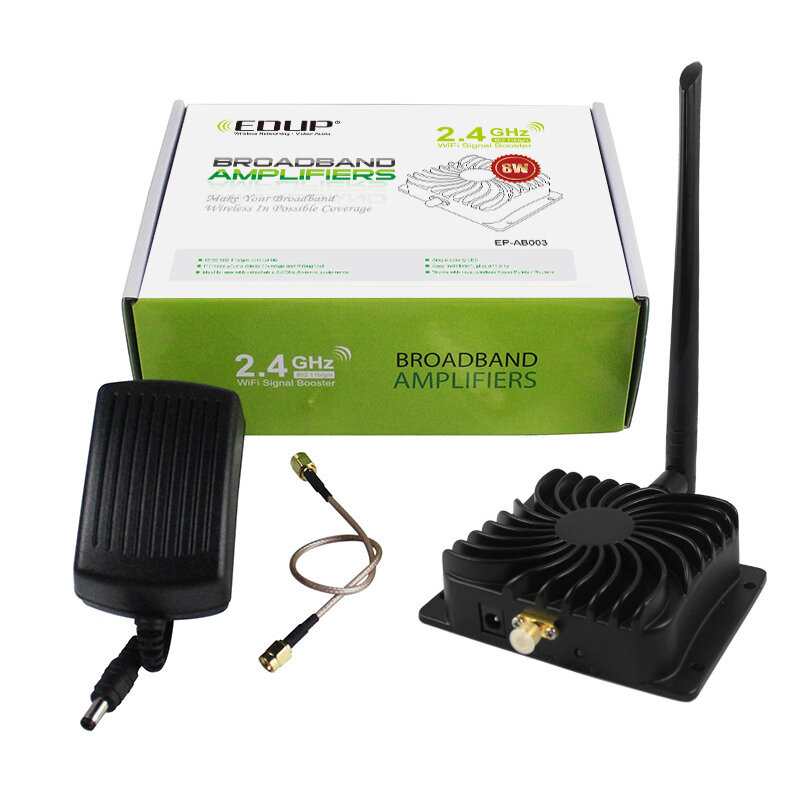

Package includes:
1 x WiFi amplifier
1 x Connector cable
1 x Power supply(EU)
1 x Manual
